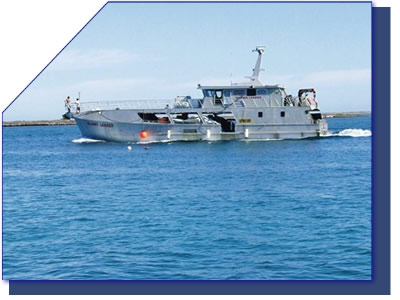

Island Leader II - Abrolhos Charter Boat

Island Leader II Abrolhos Charters and Vessel Specifications Page:

Length:		24.95m
Current Survey:		1D 50p+3 crew /1B 25p+3 crew
Engines:		2x Cat 3406C (240kw@1800rpm)
Bow Thruster:		Hydraulic
Gearboxes:		Twin Disc 4:1
Gen Sets:		Cat 1x35kva :Cat 1x100kva :Single & 3 phase outlets
Fire Pump:		Yannmar 6hp Diesel- 2x3”x11m Deck hoses Co² fire Suppression system
Life Rafts:		2x16man
Deck Area:		10.5x7.6m amidships 2.1m headroom :7.2x3.7m aft : open upper deck
Transom Doors:		2x2m / steps to Marlin Board
Upper Deck Aft Hatch:		3x3m Lifts up to access lower deck
Side Deck Doors:		2x1.3m port/2x1.3 starboard
Below Deck Tanks:		Volume: Foredeck 4.8x7.8x1.5m Aft 2.8x3.2x1.5m :20 separate tanks total
Seawater Pumps:		6x5”Electric Below deck
Above Deck Saltwater Spray System:		Deck Crane:3 tonne unic Gantry Cranes:3x1.3tonne Anchors:2x198kg plough :110mx19mm chain each

Bunks:		:21 fordeck :4 aftdeck airconditioned :2+1 Above deck airconditioned
NAV:		60m koden radar :Suzuki color sounder :Koden GPS :C-plot nav system Toshiba Laptop Autopilot
Galley:		Electric stove+oven :500L fridge :microwave :3x Split system aircon
Wheelhouse:		2xVHF :1xHF :1xUHF :1x27meg
Lighting :		240v spotlight :2x port/starboard floodlights :1x stern floodlight :6 x deck fluros
Freezers:1x walk in 1.5dx1.1wx1.9mh		:2xChestx200lit :Walk in Coolroom 1.3dx1.6wx2mh :2xIce boxes 1.2x1.9x1.1
Fuel:		:2x3500lit day tanks :30000lit refueling tank :2x2”x11mRefueling Hoses/2xDidgit read outs :Emergency deck fuel shutoff
Water		:2x 1000lit tanks :1x250lit Reem Hotwater
Toilets/Showers:		:2xDeck :3xupper deck :1xskippers ensuite
Misc:		Oxy beaver resus unit :4m Ali Pontoon Dingi+15hp
